Features:

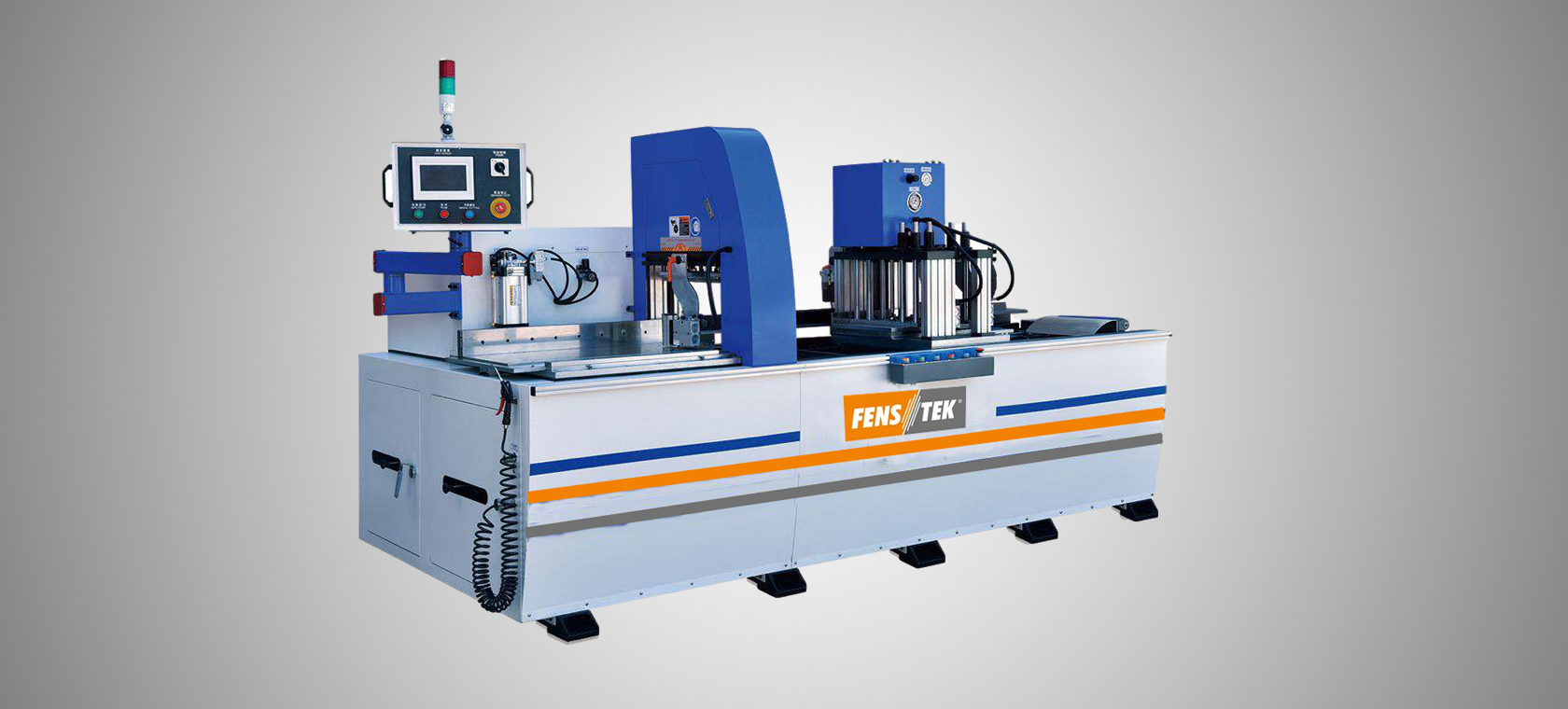

1. Industry aluminum CNC Copper And Aluminium Cutting Saw Machine Automatic feeding, automatic positioning, automatic injection, automatic sawing.

2. The feeding stroke is 1350mm (optional: 3000/6000mm), reciprocating automatic feeding can be done.

3. Horizontal saw blade cutting, suitable for wider and larger profile processing.

4. Servo motor drives ball screw with high precision.

5. Adopt Fuji NC controller and PLC control, with high stability.

6. Easy to operate by using touch screen.

7. High stability of sawing through cutter feed driven by oil pressure.

8. Specially designed clamps (two sets of upper clamp, two sets of side clamp) are suitable for irregular profile and several pieces of profile cut simultaneously.

9. The computer will automatically record the each processing work report of time and quantity for processing cost accounting.

10. During processing process the machine automatically induct no profile, or can choose to set the tailing length function.

11. Profiles may be placed side by side and overlapping.

11. Feeding mode: (1)Stepping feed (2)Reciprocating feed (3) Manual feed.

12. Special sawing action design: After the saw blade cuts the profile in a straight line,

after the working platform is pulled away by the control of the air cylinder, and the saw

blade returns to the original point. This feature is to avoid the profile being affected by

the blade returning during the processing process, which will affect the surface

smoothness and accuracy. Specially designed, so that the profile processing surface is

smoother and more accurate, and the precision is increased by ± 0. 1mm.

13. Profiles suitable for sawing: aluminium, copper, cooling fin, PVC, plastic steel

materials, bakelite plate, acrylic plastic, PTFE, honeycomb board, wood and other non-

metallic materials.
